GTK45S顶驱式液压凿岩机

我公司结合国内外需求，自主研发顶驱式液动回转凿岩机系列产品。

GTK45S采用模块化设计，三维建模、仿真计算。主要用于矿山、隧道、井下等钻爆破孔，具有钻进效率高，钻具损耗低、有使用寿命长、安装维修方便等特点。

冲击和回转：冲击和回转流量较低，特别适合国内传统潜孔钻机改顶驱钻机用。

钻孔：适合于各种岩石钻孔，钻直径76-102mm。

钻孔排渣:空压机，4-6.5m³/min,5-8kg/cm²;水30-40L/min, 8-10kg/cm²。

Throughtheresearchondomestic and foreignmarket, our Company developed series Top Drive Type Hydraulic DrifterIndependently.

Using the software of 3D modeling, simulation, we developed GTK45Swith modular design.It mainly applied to dill the blastholefor Mine, Tunnel and Undergroundetc. High drilling efficiency, low Drilling Tools Wearing, long time Operating Life,EasyInstallationandMaintenance.

Impactingand Swing: Its ImpactingFlow and Swing Flow is lower comparing other Hydaulic Drifter,suitable for demestic Drill Rig,change DTH to Hydralic Drifter

Drilling: Suitable for drilling all kinds of stone,Drilling Diameterabout 76~102mm.

Demand of the Air Compressor or Waterfor Slag Removal: Air 4~6.5 m³(5-8kg/cm²),or water 30-40L/Min(8-10kg/cm²).

GTK45S技术参数Technical Parameters

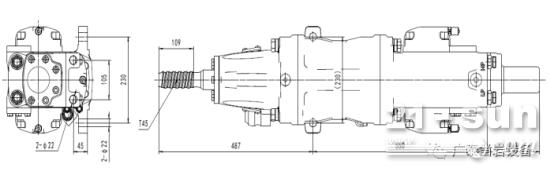

外形图Dimensions

GTK45S是针对井下、隧道研发的凿岩机，也可以用在宣化和衢州潜孔钻机改顶驱液压凿岩机的产品，凿岩机系统需要的压力和流量（冲击65L/Min、回转60L/Min）可以和潜孔钻机无缝对接。本产品2020年研发，2021年始供市场，销售近40多台，质量趋于稳定。该凿岩机冲击功率16kW，冲击频率3,000bpm，重量185kg，钻进孔径76-102mm，适合12~20T挖掘机做挖改钻。
